Aquatic FeedHIGH CAPACITY PROCESSES

Aquatic Feed
  • Total Control of Pellet Attributes

    Unique extruder features allow precise control of finished product density for floating and sinking feeds. The operator can also adjust operating conditions to control textural properties, such as oil uptake during the external coating process.

  • Superior Production Efficiency and Versatility

    • Produce aquatic feeds ranging in pellet size from 0.5 to 50 mm

    • Allow up to 22% fat or fish oil to be incorporated during extrusion

    • Permit the use of a wider range of raw materials through optimization of energy sources

  • Greater Feed Stability in Water

    Durability of feeds for bottom dwellers has shown stability of 24 hours or longer without the inclusion of binders. Floating feeds also exhibit superior durability and floating qualities.

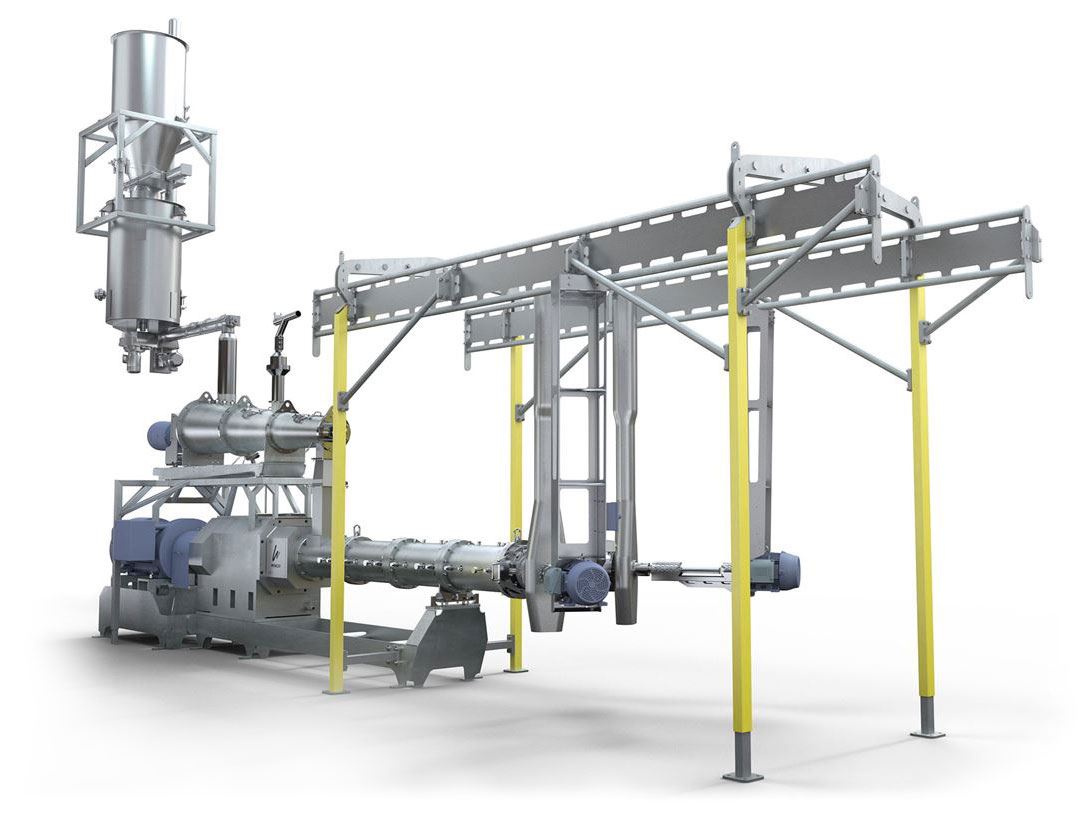

Aquaflex XT High Capacity Twin Screw Extruder

  • Features barrel geometries that allow up to 30% more capacity
  • Ideal for processing sinking and shrimp feeds as small as 0.5 mm at maximum capacities
  • Control of finished product density for either high capacity floating or sinking feeds



DOWNLOAD BROCHURE

Pet Flex

Extruders

C2 8.1 Conical Twin Screw Shrimp Feed Extruder

The Conical Twin Screw Shrimp Feed Extruder redefines the limits on sinking feed diameters and provides an alternative to pelleting.



  • icon

    3 TO 5 TIMES HIGHER PRODUCTION RATES

    Creates 3 to 5 times higher production rates and improved size uniformity

  • icon

    TAILORED SPECIFICALLY FOR AQUATIC FEEDS

    Tailored specifically for aquatic feeds down to 0.8mm in size

  • icon

    SHRIMP SURVIVABILITY INCREASED

    Shrimp survivability increased from 75% on pelleted feed to 88.9% on extruded feed

  • icon

    QUICKLY ADAPTS TO RECIPE MOISTURE

    Quickly adapts to recipe moisture, recipe temperature, cook in the preconditioner and extruder speed

Download Brochure

Shrimp Feed Dryer The Wenger Four Pass Continuous 24x30 Shrimp Feed Dryer

Shrimp Feed Dryer



  • The Mesh Screen Conveyor retains all feed while maximizing process airflow that removes moisture from the product.
  • Heavy Duty Steam Coils ensure reliability and provide an abundance of consistent, efficient heat to the drying process.
  • The new Direct Drive Spout Spreader provides easy in-line adjustment of spreader to create a level product bed, which is important for uniformity in the final product moisture level.‚ÄčDOWNLOAD BROCHURE

Efficient Use of Plant Space

The Shrimp Feed Dryer uses height instead of taking up limited floor space in the plant. Product goes through extra passes within the taller framework of the dryer, which means it’s blended multiple times during the continuous drying process.

Retention Time

Variable speed control of all conveyors in the Shrimp Feed Dryer provides process adjustment to pinpoint the drying time and bed depths needed for the shrimp feed drying process.

Temperature Control

Using its heavy-duty steam coils, the Shrimp Feed Dryer’s steam control valves precisely control zone process temperature. Three temperature zones provide flexibility for perfecting the process parameters.

Airflow Control

Fine-tuning of process airflow speed and balance allows for production of a variety of feed sizes and densities while maximizing drying capacities of each product.

  • Airflow from both sides of the dryer provides even drying across the bed
  • Speed control optimizes the drying capacity of each product
  • Available adjustments improve efficiency of the drying process and quality of the final shrimp feed

Request Info

to discuss the feasibility, design and implementation for your project

Research & Product Development

The Wenger Technical Center is an agrifood laboratory equipped with the latest in research and production scale extrusion and drying equipment. Let us assist you with:

  • Product development
  • Laboratory analysis
  • Process evaluation
Work With Us

Project Feasibility, Design & Implementation

Count on our knowledge base and breadth of experience that is unsurpassed in extrusion processing and facilities construction.

Start Planning
