Plumbing & Wiring Module
Save time and expense on new equipment installation

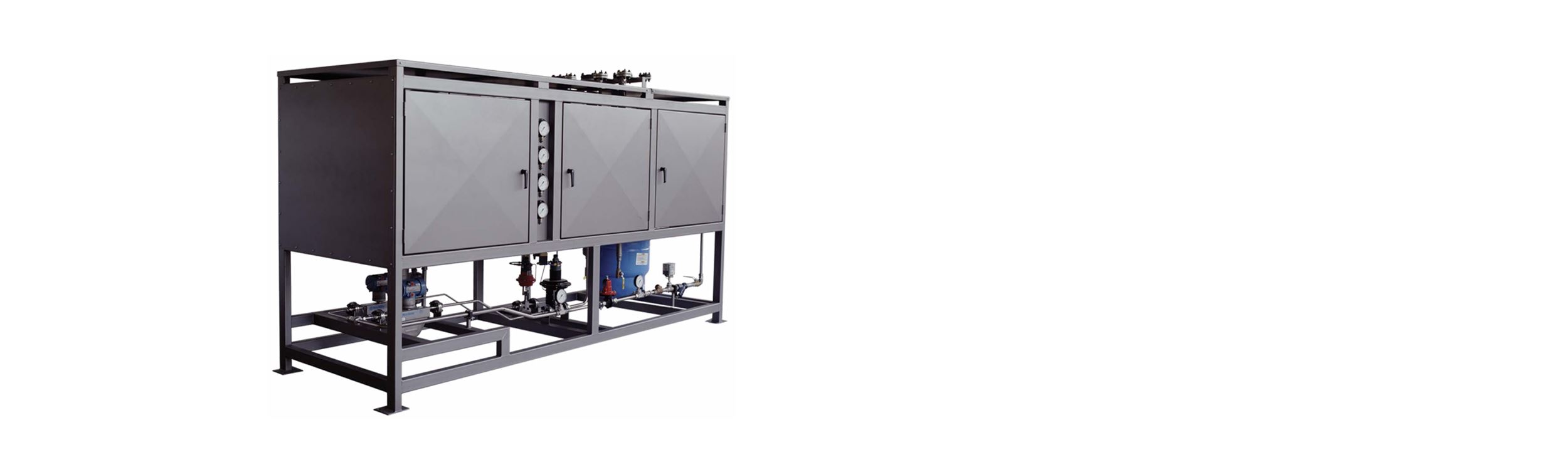

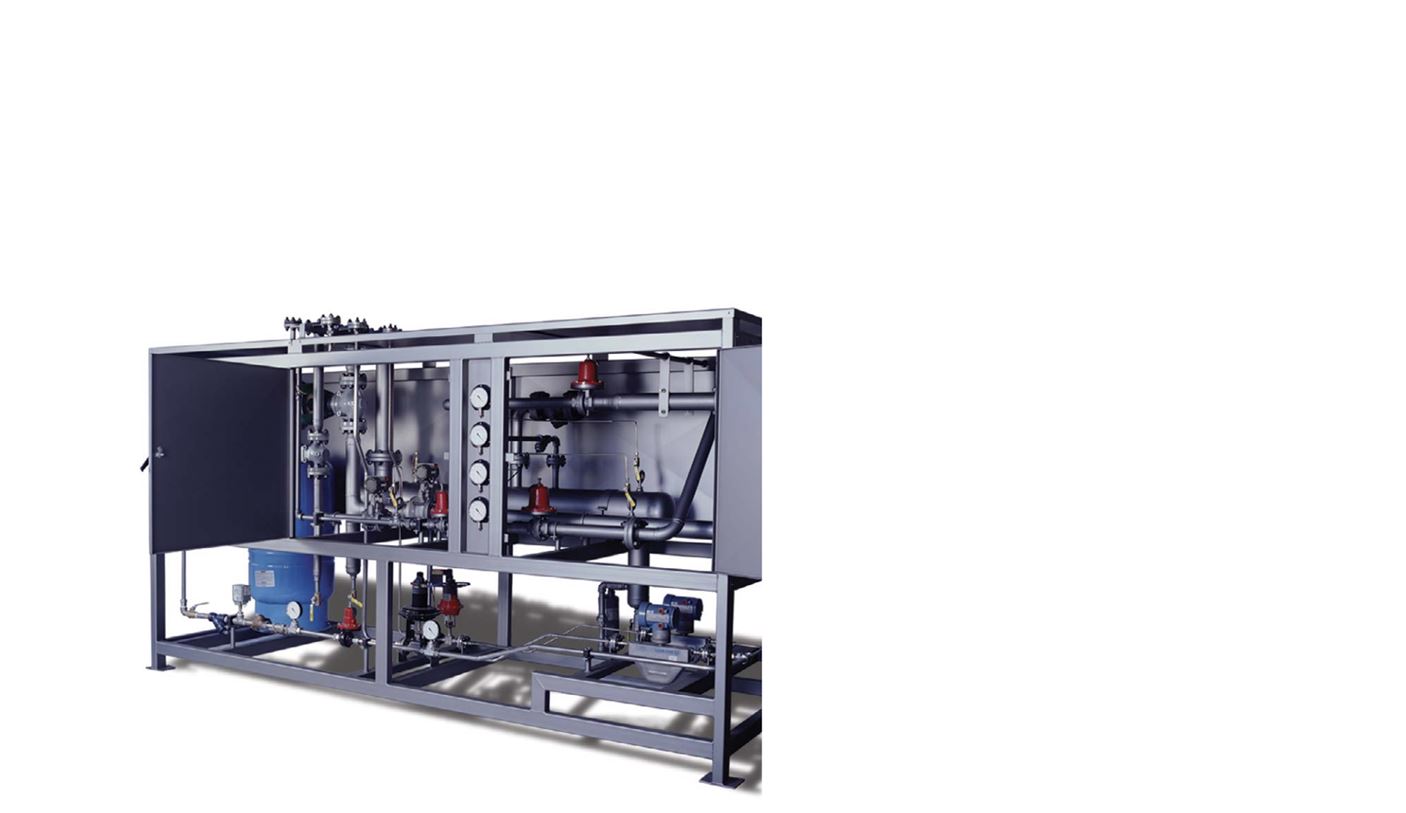

A prepackaged plumbing module is provided with every Wenger extruder. These modules come skidded and ready to connect to your steam and water service. Each major equipment component includes an electrical junction box with control devices pre-wired to terminals.
- Reduced installation time
- Pre-plumbing ensures proper device and piping orientation
- Pre-wiring allows testing and pre-calibration
- Shorter startup training and commissioning
- One-point connection of local utilities
Savings in excess of $50,000 in reduced installation time and errors have been reported by contractors, in comparison to systems without the pre-wiring/pre-plumbing assembly.
-
Junction Boxes
Watertight junction boxes and switches are pre-wired. All provided motors of less than 10 hp, flow switches, control valves and other instrumentation are preconnected. Conduit and connection wire are provided where applicable on the machine.
-
Control Cabinet
The control cabinet contains the PLC (optional), circuit breakers, relays, and numbered terminals for field connections. Interconnection wiring between junction boxes is not included.
-
Meters
Flow meters are properly mounted in the plumbing rack frame with required flanged connections and disconnection valves.
Applications In
-
Food
Textured vegetable proteins, structured meat alternatives, ingredients, protein crisps, breadings, RTE cereals, snacks, hybrid products, and many more
-
Pet Food
Traditional kibble, semi-moist, high fresh meat inclusion, treats (long, short, filled, dental) - and flexibility for new products with numerous ingredient options
-
Aquatic Feed
Floating, sinking, slow-sinking feeds, Recirculating Aquaculture System (RAS) feeds, and a wide variety of specialty feeds
-
Industrial
With Wenger systems, you can create new products for industrial or consumer applications. Whatever idea you're thinking about, Wenger can help.
