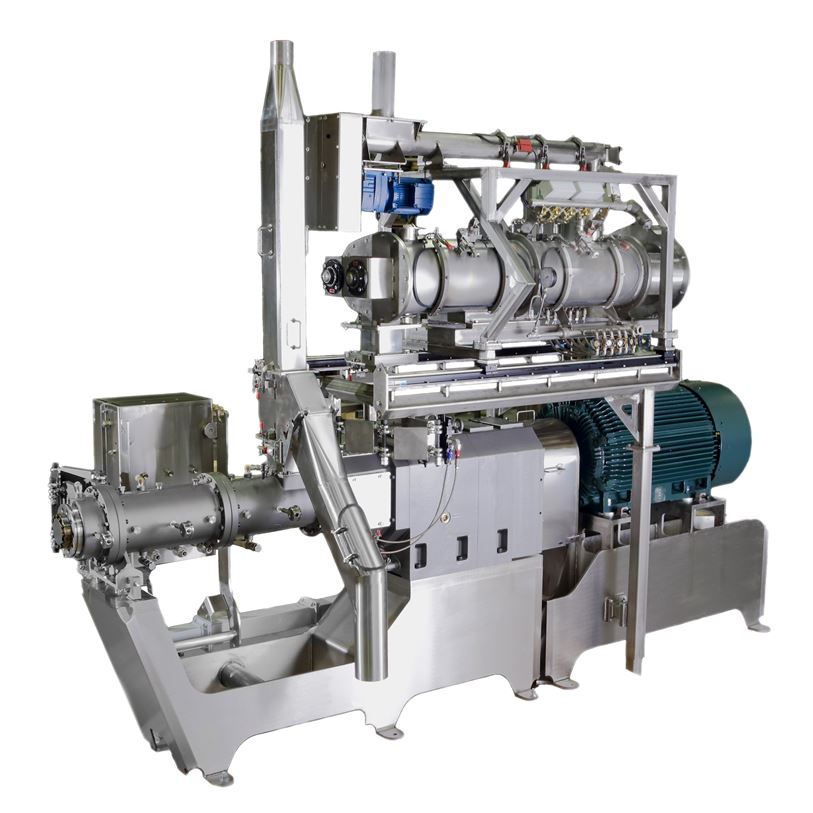

Magnum ST Series Twin Screw Extruders

High SME Ratings and  Unsurpassed Versatility



The Magnum ST Series redefines versatility for cooking extuders. Maximize your output in a smaller footprint. And use the higher SME (Specific Mechanical Energy) levels to take your extruded products to the next level.

  • Maximum speeds up to 1,200 rpm
  • Power levels to 165 kWhr/t SME at volumetric capacity



How can higher SPE benefit your extruded products?



  • Potential for lower bulk density

  • Higher absorbency levels of liquid coating

  • Smaller cell structure

  • Enhancement of textural properties

  • Higher cook levels

Pet Flex
Pet Flex

Higher Torque at Lower Shaft Speeds



Utilizing parallel-shaft twin screws, the Magnum ST extruders are ideal for unique processes that require extreme operating parameters. With their increased process flexibility and rate potential, the Magnum ST Series is especially suited for:

  • Applications with extreme product viscosities
  • Processes requiring high SME inputs
  • Continuous physical and chemical reactions
  • Dispersive mixing applications

Maximize the efficiency of any Magnum ST extruder by using the Wenger High Intensity Preconditioner (HIP). A choice of three “mixing intensity” settings, controlled by process personnel, provides control of process requirements, allowing the increased addition of fiber, higher levels of whole grain additives and liquids in the recipe. The intense mixing provided by the High Intensity Preconditioner also creates smaller particles for more uniform hydration and better temperature control of the recipe.



learn more about the HIP

Pet Flex
  • Automatic Control Systems

    As the ultimate in control systems, our automated process management (APM) utilizes our exclusive Human-Machine-Interface (HMI) to relieve the programmable logic controller of many time and memory tasks, including formula storage and manipulation, color graphic generation and trending.

  • Dry Ingredient Feed System

    Choose from screw conveyors or vibratory feeders combined with bin capacities up to 4,250 liters. No matter the combination, the included Wenger bin feeder system ensures uninterrupted and rate-controllable metering of raw materials into the preconditioner and extruder.  The system is further supported through load cells that weigh the dry mix in the bin and signal to the Loss-In-Weigh controller the flow rate through the feeder device.

  • Convenient Barrel/Shaft Removal

    Quick and simple barrel/shaft removal is facilitated through a hinged cone head that eliminates the need to open the barrel for cleaning or for changing final screw elements, simplifying maintenance for a higher degree of sanitation and allowing quicker service for less downtime.

  • Overhead Rail System

    Unique to Wenger extruders, the overhead rail system permits operators to conveniently add process tools or remove extruder barrel components without heavy lifting or the need for additional equipment. The rail system also supports the hood, knife and additional options for cleaner floor space and greater durability.

Petformance

Model No.Screw DiameterMax Capacity (KG/HR)Max Installed Power (kW)
TX-5757 mm100060
TX-8585 mm2800188
TX-115115 mm6800450
TX-138138 mm9300750
TX-144144 mm13000900
TX-168168 mm168001000

Talk to a Product Specialist

to discuss the feasibility, design and implementation for your project
